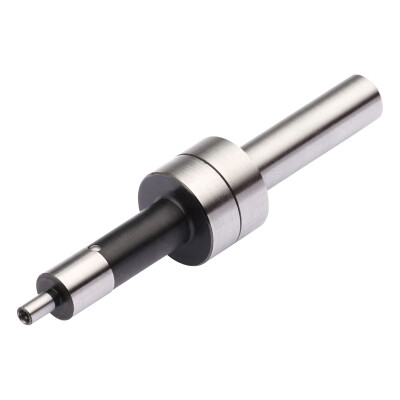

Edge finder mechanical
702.10.4
EAN-kod: 4250001013530
10 - 94 - 10/4
VAT 0%
17,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For alignment of component reference surfaces or edges. Spindle speed approx. 600 rpm.
The contact point has a flexible connection to the body via a spring, with an alignment accuracy of 0.01 mm. All parts fully hardened and ground.
Size 10: With parallel contact point 10 mm Ø.
Size 10/4: With stepped contact point 10 and 4 mm Ø.
Technical details
Description
Symbol
Value
Body diameter 2
BD2
4
Overall length
OAL
94 mm
Mounting Ø, machine side
DCONMS
10 mm
kroppsdiameter
BD
10 mm
