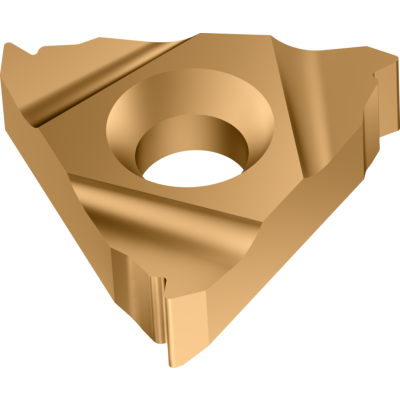

Utvändiga gängade insatser - massiv profil, BSPT 55°
TS16-ER19BSPT WMP32G NEW 2024
EAN-kod: 4063466363030
ISO7/1
ISO228/1 35 21 1959
P
M
K
N
S
H
O
VAT 0%
25,40 €
Kontrollerar lagersaldo
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Diameter innercirkel
hmin
9,53 mm
Skärlängd
d
16 mm
Antal tänder
l
1 mm
Verktygsbeteckning
Z
TS16-ER1.5ISO-F5 WMP32G
Profilavstånd ey
Designation
0,8
Profilavstånd ex
Y
0,8 mm
Radie
X
0,21 mm
Skärtjocklek
r
3,47 mm
Gängor per tum
s
48–8 mm
Threads per inch
TPI [Threads/Inch]
19
